Globally, with manufacturing on the rise, precision rotational parts such as shafts, sleeves and flanges are in demand. However, sourcing high, quality CNC turning parts can be a major headache for companies with deliver delays, cost excesses and quality inconsistency being the main issues. Usually, the cause of such problems is a lack of understanding of turning processes, manufacture, unfriendly designs and the choice of a supplier who has neither the qualifications nor the capabilities.
This piece breaks down in detail the basic technical aspects and market logic of precision CNC machining and serves as a first, hand and comprehensive guide from design optimization to supplier evaluation. Nonetheless, to thoroughly tackle these problems, it is vital to view the problem from these major aspects below.

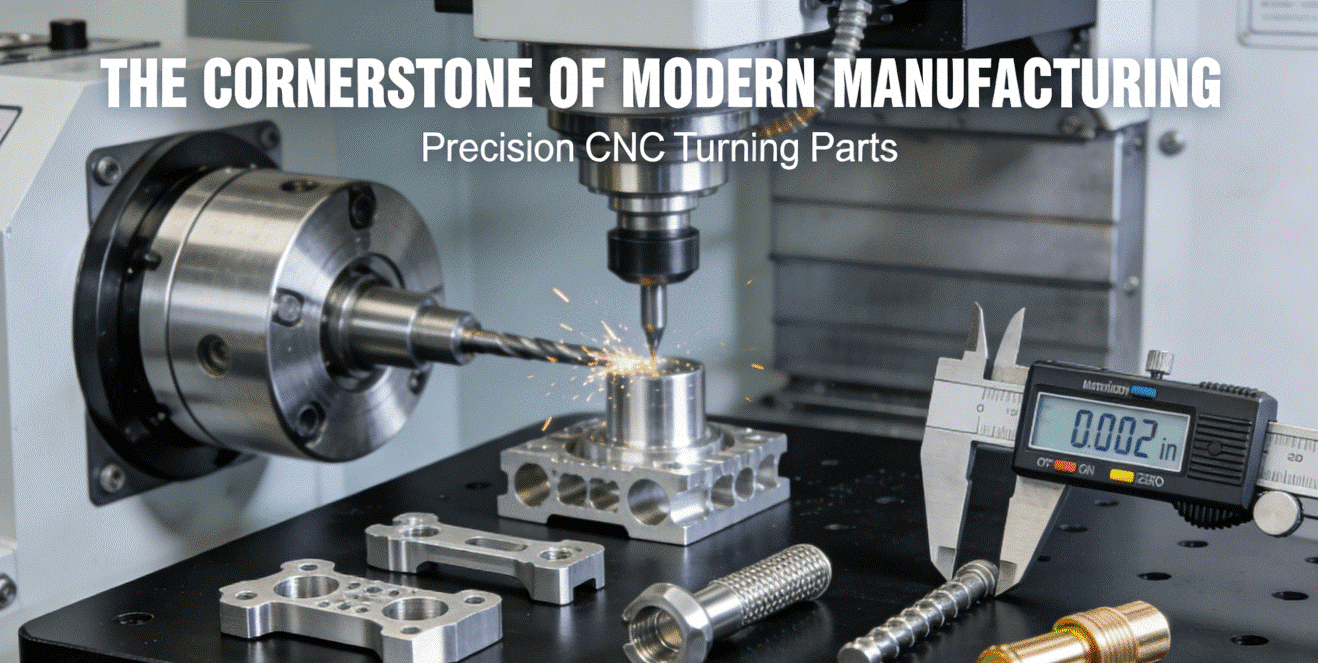

What are CNC Precision Turning Parts? Why Are They the Cornerstone of Modern Manufacturing?
The Definition of Precision CNC Turning
Precision CNC turning is an essential subtractive manufacturing process. It involves a high, speed rotation of a cylindrical workpiece and a computer, controlled cutting tool that is stationary but moves along the axis of the workpiece to remove the material. Such a technique is chiefly aimed at fabricating these pieces which have high accuracy and are rotationally symmetric with very complicated features such as threads, grooves, and contoured profiles. The process is so perfect that it is always carried out based on set of digital instructions (i.e. G, code), which in turn guarantees exceptional repeatability and very tight control over the dimensional consistency of parts through different production runs.
Core Characteristics: Precision and Capability
The necessity of the process can be explained by the special set of its inherent characteristics. To begin with, the process has axial symmetry, which makes it particularly useful for making parts such as shafts and bushings. Moreover, the process has the capability to produce remarkable precision, with the standard tolerance levels being as precise as ±0.005mm—a precision that has been stringently defined and standardized under the International Organization for Standardization’s (ISO) ISO 230 series, which outlines the testing of machine tools. Finally, the process has the capability to produce excellent surface finishes and to machine complex parts in one operation, which makes the process particularly efficient and reliable.
Widespread Industrial Applications
The CNC turning parts play the role of the basic parts in the most important industries. They play the critical role in the automotive industry, particularly in the engine and transmission systems, in the medical industry, particularly in implants and medical instruments, and in consumer electronics, particularly in connectors and cases.
- Automotive and Medical Foundations
The CNC turning parts are the mechanical foundations of critical industries. For the automotive industry, these parts are critical for engine parts such as the engine’s camshaft, transmission shaft, and engine valve bodies. For the medical industry, these parts are critical for implants such as bone screws and surgical instrument handles, which must be sterile and biocompatible.
- Electronics and Beyond
For the consumer electronics industry, miniature and precision parts are critical for components such as electrical connectors, pins, and structural parts. These parts are also used in robotics, aerospace, and industrial machinery, which further illustrates their ubiquitous use.For a deeper exploration of the diverse types and applications of these components, refer to this detailed resource on CNC turning parts.
How to Design CNC Turning Parts for Optimal Cost-Efficiency?

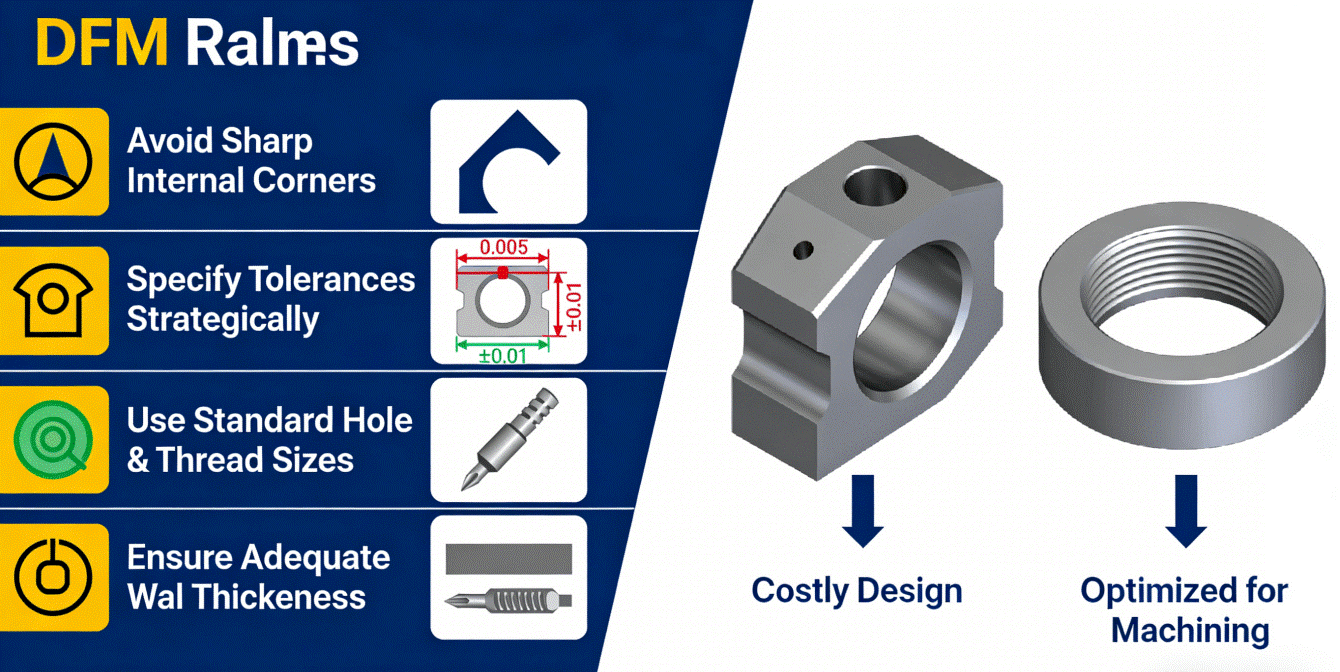

Getting the best price for CNC precision turning parts price really starts at the design stage with a concept called Design for Manufacturability (DFM). DFM is essentially the designing of parts to make them better suited for the specific manufacturing process chosen, thus minimizing complexity, waste, and cost. One of the main principles of DFM for turned parts is the purposeful setting of tolerances.
If go around assigning super, tight tolerances to every feature, the cost will skyrocket as the machining would have to be done at slower speeds, specialized tools would be needed, plus there would be extensive inspections. Designers ideally should only set tight tolerances for features that are critical for the functionality and interfaces, and let the standard machining tolerances be for the rest of the dimensions that are non, critical. This one small step might turn out to be a very significant cost, saving measure.
Besides that, DFM rules also say that one should not put sharp internal corners as they call for special tools; when designing holes, one should consider a depth, to, diameter ratio that is quite reasonable so as to avoid tool breaks; the wall thickness should be sufficient so as to prevent deformation; and, if at all possible, one should stick to the use of standard drill sizes and thread forms. Reducing a design by means of cutting down the number of required setups or tool changes will result in lower programming time, faster cycle times, and finally, reduced CNC precision turning costs. Only through an early DFM analysis collaboration with a manufacturing partner will one be able to find and eliminate most of the cost drivers even before the production starts.
Why is Aluminum the Preferred Material for CNC Turning Parts?
Among the myriad of materials available for machining, aluminum is the premier material for many different types of aluminum CNC turning parts. The reasons for the popularity of aluminum are obvious: it has a combination of properties that are unmatched and fit the needs of the manufacturing world.
Firstly, aluminum has excellent machinability. Aluminum is a relatively soft material and has low cutting resistance. This results in higher spindle speed and feed rates, which are critical factors for reducing machining costs. Secondly, aluminum has excellent strength-to-weight properties. A machined part can be both strong and lightweight, which is critical for aerospace, automotive, and robotics applications.
Aluminum is the most popular material for machining, but there are other materials used for different applications. Stainless steel is used for parts that require corrosion and high-strength properties. Brass is used for parts that require high electrical and decorative properties. Engineering plastics are used for high-temperature and high-chemical properties.
How to Select a Reliable CNC Turning Parts Manufacturer in the Global Supply Chain?
Finding the right manufacturing partner is probably the most important step in guaranteeing the project’s success. The global supply chain, especially CNC turning parts China, meets the industrial ecosystem, technical expertise, and cost, structure matures simultaneously, thus it becomes a center of sourcing. But a thorough evaluation must be done. A few key indicators are the type of technical capability that should be the determining factor and the range of the equipment should be checked i.e. multi, axis turning centers, live tooling, and CNC turning services for the production of complicated parts etc. Check whether a manufacturer implements product quality control at various stages of production and advanced measuring instruments like CMMs can be found. Besides, evidential capacity and a good history of on, time delivery are absolute necessities for production without interruption.
The clearest measure of a manufacturer’s dedication to carrying out quality in a systematic way is probably the possession of international certifications. Give preference to those partners who have obtained the certification of ISO 9001 (Quality Management), IATF 16949 (Automotive), and AS9100D (Aerospace), since these standards require that the processes are not only controlled but also capable of being repeated. For example, a certification such as ISO 14001 also indicates a dedication to sustainable operations. According to the reports of the Society of Manufacturing Engineers (SME) on the trends of global advanced manufacturing, resilience more and more relies on getting together with certified, transparent suppliers who are capable of showing rigorous process control, and not just low cost.
What are the Primary Factors Influencing the Price of CNC Precision Turning Parts?
Gaining insight into the various cost drivers of CNC precision turning parts price is essential to efficient budgeting and value engineering. Essentially, the final price is a culmination of various factors that are interconnected in nature.
Material and Initial Design Complexity
Material costs are a fundamental aspect of any CNC precision turning part pricing. Rare materials like titanium are naturally more expensive compared to common aluminum or steel alloys.Design complexities in terms of number of unique design features, thin walls, deep holes, and number of tight tolerance callouts are also a significant factor in CNC precision turning parts pricing.
- The Prototype vs. Production Paradigm
When it comes to prototypes or small batch quantities, the pricing is largely driven by fixed costs that include CAM programming, first article inspection, and fixture design and setup.
- Economies of Scale in High Volume Runs
These initial costs are spread over thousands of pieces in a high-volume run, significantly reducing the unit price of each piece. In addition, there are economies of scale in that high-speed machining strategies can be implemented to further increase productivity.
Strategic Cost Optimization
A strategy for CNC precision turning parts price management is to utilize DFM techniques to reduce design complexity, material selection, and order quantity. Design simplification, standardization of hole sizes, and strategic quantity are all valid strategies. To get a quote based on your design and receive professional DFM feedback, please click here, consider utilizing a professional online quoting system for CNC turning services.
Conclusion
CNC precision turning is an indispensable pillar of modern manufacturing. With a thorough understanding of the principles of CNC precision turning, abiding by DFM guidelines, taking an informed decision in choosing materials, and working with a trusted and internationally certified CNC turning parts manufacturer, businesses can not only get high-quality products but also effectively manage their projects in terms of time, cost, and risk. This is a winning strategy in today’s fast-paced market scenario. For your next project, a wise beginning would be to get a detailed quotation from a trusted partner.
FAQs
Q: What is the main difference between CNC turning and CNC milling?
A: CNC turning is mainly employed to manufacture rotationally symmetrical parts where the workpiece is rotating and the cutting tool is moving. On the other hand, CNC milling is suitable for non, rotational parts with complex contours where the rotating tool moves against a stationary workpiece. They are frequently combined (turn, mill) to produce complex components.
Q: What is the most common surface treatment for aluminum CNC turned parts?
A: Anodizing is the most common one. It not only enhances the surface hardness, wear resistance, and corrosion resistance of the aluminum but also delivers a great variety of colors besides an excellent aesthetic finish.
Q: How does the cost structure differ between low, volume prototyping and high, volume production for CNC turning?
A: Prototyping costs mainly come from one, off setup activities: programming, fixture setup, and per, part machining time. With high, volume production, the unit cost falls greatly because the initial setup cost can be spread over many units, and the processes can be fine, tuned for to maximize efficiency and material utilization.
Q: How to judge the quality level of a CNC turning parts manufacturer?
A: The key is to look at their quality system certifications (such as ISO 9001, IATF 16949), testing equipment (such as a coordinate measuring machine (CMM), past cases, and whether they provide detailed inspection reports (FAI).
Q: Before submitting design drawings for a quote, what points can I check myself to reduce costs?
A: Check and simplify unnecessary stringent tolerances, add process fillets to internal corners, avoid excessively deep blind holes, and use standard drill bits and thread sizes whenever possible. These can effectively reduce machining difficulty and costs.
